Full Heating Upgrade at Ryhope Community Centre
- Apr 22
- 3 min read
When Ryhope Community Centre reached out to us, they were facing a serious challenge: their heating system had completely broken down. For months, the building which was used daily by children, elderly residents, and local activity groups, had been without reliable heating.
The Challenge
The existing system was outdated and inefficient, and simply not even running anymore. It relied on aging cast iron radiators and a large industrial boiler that had long passed its prime. With no central heating, the centre had been forced to depend on electric heaters, an expensive and unsustainable stopgap.
As a charity-funded organisation, budget constraints were a major concern. Several companies had already quoted for the work, but costs were unrealistically high. Some proposals even included oversized boiler systems or alternative warm air solutions that didn’t align with the centre’s actual needs or budget.
Our Approach
At Warm Dynamo, we took a different route.
Our surveying and design team carried out detailed heat loss calculations to understand the building’s exact heating requirements. Rather than overestimating capacity (and cost), we designed a solution tailored precisely to the centre’s energy needs, ensuring optimal performance without unnecessary expense.
The Solution

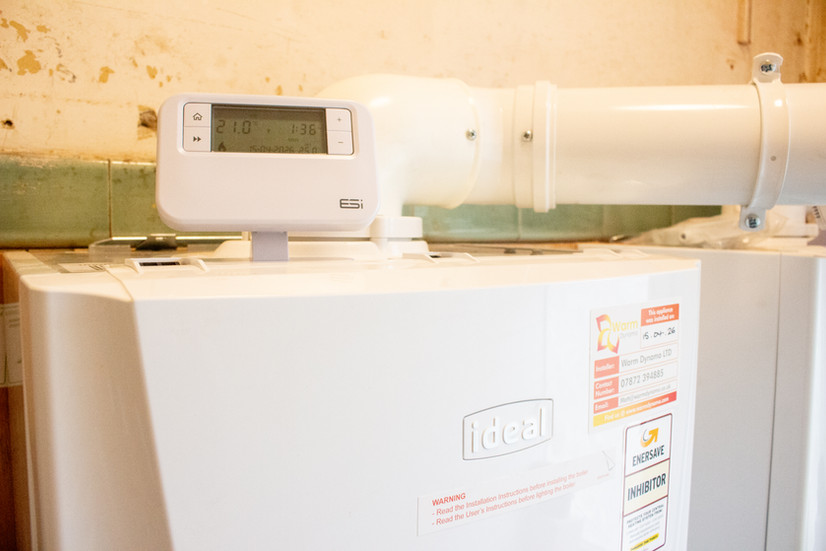

We recommended installing two 40kW Ideal Vogue Max Combi Boilers, configured across two independent heating zones:
Upstairs system – for less frequently used areas, including a large open hall
Downstairs system – for high-traffic, daily-use spaces, and smaller rooms
This zoning approach allows the centre to heat only the areas in use, significantly improving energy efficiency and reducing running costs.
The Installation
The full upgrade included:
New boilers
Modern radiators
Complete pipework replacement
Despite the scale of the project, installation was completed in just four weeks, and ahead of schedule.
We understood how vital the centre is to the community, so instead of requiring a full closure (as others had proposed), we worked in phases. This allowed groups to continue using parts of the building throughout the project.
Health and safety remained a top priority. Comprehensive risk assessments (RAMS) were carried out, and our team ensured every space was left clean, safe, and ready for use at the end of each work stage.
Technical Details
The building required different installation approaches:
Upstairs: Surface-mounted copper pipework using modern press fittings, carefully chosen to complement the building’s aesthetics
Downstairs: A different pipework method suited to the layout and usage demands
End-to-End Delivery
Warm Dynamo managed the entire process:
System design and specification
Material sourcing
Installation and labour
Building regulations compliance
Final system registration and sign-off
We also provided a full handover, ensuring the team at Ryhope Community Centre understood how to operate and control their new system with ease.
The Results
The transformation has been significant:
Reliable, efficient heating throughout the building
No more reliance on costly electric heaters
Lower energy bills and reduced carbon emissions
Greater control with zoned heating systems
A more comfortable environment for all users
Most importantly, the centre can now continue its vital role in the community without disruption!
Supporting the Community
This project was about more than just heating, it was about supporting a space that brings people together. We’re proud to have delivered a solution that’s both cost-effective and built to last!
